Basic Operations in Graph Data Structure

In this note are code for basic operations for Graph as adjacency list and Graph as adjacency matrix.

Base code

@dataclass(frozen=True, repr=False)
class Vertex[T]:
    data: T

    def __repr__(self) -> str:
        return str(self.data)

type _V = Vertex[Any]

class BaseGraph(Protocol):
    def add_vertex(self, vertex: _V) -> None: ...
    def add_edge(
        self, src: _V, dest: _V, weight: float = 1, directed: bool = False
    ) -> None: ...
    def remove_edge(self, _V: _V, dest: _V, directed: bool = False) -> None: ...
    def has_edge(self, src: _V, dest: _V) -> bool: ...
    def display(self) -> None: ...

    def dfs(self, start: _V) -> list[_V]:
        to_visit: list[_V] = [start]
        visited: set[_V] = {start}
        path: list[_V] = []

        while len(to_visit) != 0:
            curr = to_visit.pop()
            path.append(curr)

            for neigh in self._get_neighs(curr):
                if neigh not in visited:
                    to_visit.append(neigh)
                    visited.add(neigh)

        return path

    def bfs(self, start: _V) -> list[_V]:
        to_visit: Deque[_V] = deque([start])
        visited: set[_V] = set()
        path: list[_V] = []

        while len(to_visit) != 0:
            curr = to_visit.popleft()

            if curr not in visited:
                visited.add(curr)
                path.append(curr)

                for neigh in self._get_neighs(curr):
                    to_visit.append(neigh)

        return path

    @abstractmethod
    def _get_neighs(self, vertex: _V) -> list[_V]: ...

Adjacency matrix

class AdjacencyMatrixGraph(BaseGraph):
    def __init__(self, verteces: list[_V] | None = None) -> None:
        self._verteces = []
        self._adjacency_matrix: list[list[float]] = []
        if verteces is not None:
            for v in verteces:
                self.add_vertex(v)

    def add_vertex(self, vertex: _V) -> None:
        if vertex in self._verteces:
            raise ValueError(f"Vertex with data {vertex.data} already exists.")

        self._verteces.append(vertex)

        for row in self._adjacency_matrix:
            row.append(0)
        self._adjacency_matrix.append([0] * len(self._verteces))

    def add_edge(
        self, src: _V, dest: _V, weight: float = 1, directed: bool = False
    ) -> None:
        src_i = self._verteces.index(src)
        dest_i = self._verteces.index(dest)
        self._adjacency_matrix[src_i][dest_i] = weight
        if not directed:
            self._adjacency_matrix[dest_i][src_i] = weight

    def remove_edge(self, src: _V, dest: _V, directed: bool = False) -> None:
        self.add_edge(src, dest, 0, directed)

    def has_edge(self, src: _V, dest: _V) -> bool:
        src_i = self._verteces.index(src)
        dest_i = self._verteces.index(dest)
        return self._adjacency_matrix[src_i][dest_i] != 0

    def display(self) -> None:
        print(" ", *self._verteces)
        for vertex, row in zip(self._verteces, self._adjacency_matrix):
            print(vertex, " ".join(map(str, row)))

    def _get_neighs(self, vertex: _V) -> list[_V]:
        vertex_i = self._verteces.index(vertex)
        ret: list[_V] = []
        for i, edge in enumerate(self._adjacency_matrix[vertex_i]):
            if edge == 0:
                continue
            ret.append(self._verteces[i])
        return ret

Adjacency list

class AdjacencyListGraph(BaseGraph):
    def __init__(self, verteces: list[_V] | None = None) -> None:
        self._adjacency_list: list[list[_V]] = []
        if verteces is not None:
            for v in verteces:
                self.add_vertex(v)

    def add_vertex(self, vertex: _V) -> None:
        self._adjacency_list.append([vertex])

    def add_edge(
        self, src: _V, dest: _V, weight: float = 1, directed: bool = False
    ) -> None:
        src_i = self._idx_from_vertex(src)
        dest_i = self._idx_from_vertex(dest)
        node = self._adjacency_list[dest_i][0]
        self._adjacency_list[src_i].append(node)
        if not directed:
            node = self._adjacency_list[src_i][0]
            self._adjacency_list[dest_i].append(node)

    def remove_edge(self, src: _V, dest: _V, directed: bool = False) -> None:
        src_i = self._idx_from_vertex(src)
        dest_i = self._idx_from_vertex(dest)
        node = self._adjacency_list[dest_i][0]
        self._adjacency_list[src_i].remove(node)

    def has_edge(self, src: _V, dest: Vertex) -> bool:
        src_i = self._idx_from_vertex(src)
        dest_i = self._idx_from_vertex(dest)
        node = self._adjacency_list[dest_i][0]
        return node in self._adjacency_list[src_i]

    def display(self) -> None:
        for list_ in self._adjacency_list:
            print(list_)

    def _get_neighs(self, vertex: _V) -> list[_V]:
        return self._adjacency_list[self._idx_from_vertex(vertex)][1:]

    def _idx_from_vertex(self, vertex: _V) -> int:
        for i, v in enumerate(self._adjacency_list):
            if v[0] == vertex:
                return i
        raise ValueError(f"Vertex with data {vertex.data} is not in the graph.")


Code usage example

a = Vertex("A")
b = Vertex("B")
c = Vertex("C")
d = Vertex("D")
e = Vertex("E")
verteces = [a, b, c, d, e]

m_graph = AdjacencyMatrixGraph(verteces)
a_graph = AdjacencyListGraph(verteces)

graph_impls: list[BaseGraph] = [m_graph, a_graph]

for graph in graph_impls    graph.add_edge(a, b, directed=True)
    graph.add_edge(b, c, directed=True)
    graph.add_edge(b, e, directed=True)
    graph.add_edge(c, d, directed=True)
    graph.add_edge(c, e, directed=True)
    graph.add_edge(e, a, directed=True)
    graph.add_edge(e, c, directed=True)

    print(graph.bfs(a))
    print(graph.dfs(a))

    print(graph.has_edge(e, c))

    graph.remove_edge(e, c)

    print(graph.has_edge(e, c))

    graph.display()

    print("\\n", "=" * 20, "\\n")

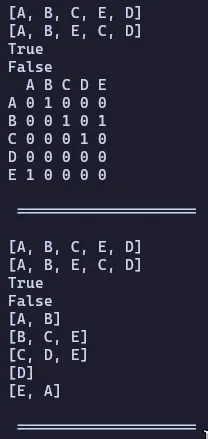

Output
